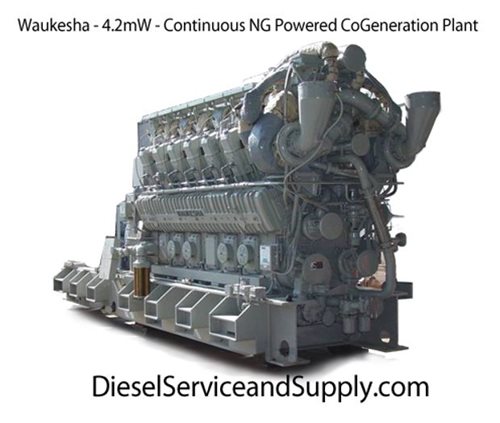

Waukesha - 4.2 MW Continuous Natural Gas Powered CoGeneration Plant

2 - 2100 kW WAUKESHA generator sets with absorption chiller and exhaust heat recovery system, can run a small community or a large campus easily and efficiently. Waukesha is the preferred choice for demanding applications worldwide, with ratings at 2100 kW at 60 Hz (900 rpm).

Waukesha2.JPGEngine Make:  Waukesha
Generator End Make:  Kato Inc
Model:  8P10.5-4200 2/3 pitch generator rated 2,100 kW / 2625 kVA.
Model Year:  2004
Hz:  60
KW: 2100 each
Hours:  New
Phase:  Three Phase
Fuel Type:  Natural Gas
Serial#:  C94554-901/1 and C94554-901/2
Unit#:  C94554-901/1 and C94554-901/2

Description:  Waukesha Model # 8P10.5-4200 2/3 pitch generator rated 2,100 kW / 2625 kVA.  Model 8P10.5-4200, 2955@2204 kW Hp, @ 900 RPM. 2/3 pitch generator rated 2,100 kW/2625 kVA. Class F 105 degrees C rise. Voltage rating of 12,470 Volts, 3 Phase, 60 Hz. 0.8, Leads: 6, Non-Reconnectable, Controls: Auto Start/Stop, Safety Shut Down, Air Cleaner, Muffler, Digital Panel, Digital Engine Panel, Skid Mounted.

More Details: Power Factor. Generator is six wire WYE connected equipped with a PMG. The enclosure is TEFC with top mounted air to air heat exchanger with stainless steel tubes. Side mounted High Voltage terminal box with differential and cross current compensation CT’s. 100 ohm winding temperature, bearing temperature and air discharge RTD’s. Generator bearings are self lubricated with onboard lube pump, oil cooler and filtration system.  Generator Controls including voltage regulator, var/pf controller and synchronizer.  Avtron 200 amp, 40 ohm, 10 second neutral grounding resistors.

Shipping Weight: 85,000+ pounds.

Waukesha.JPGPrice: Call for Price 1-855-657-7600

Other Features/Highlights:
  • Brand new 2004 natural gas generators with zero hours!

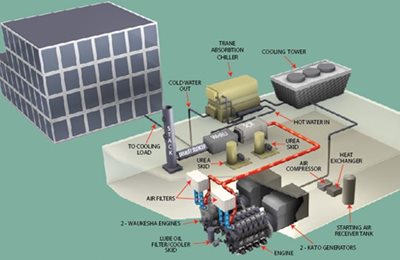

  • The robust construction of this Cogeneration Plant are comprised of two (2) complete 2100 kW engine/generators
  • Exhaust heat recovery system and absorption chiller
  • Meets all the California EPA/emissions and sound requirements
  • Recent emissions and load bank testing confirms that units exceed typical emissions standards (reports available upon request)
  • Complete OEM installation and maintenance documentation included.
  • Engines are equipped with SCR's and urea injection systems
  • Installation and after-sale support available.
  • Click the following link to view pictures of the Waukesha generator sets.

Generator Source thoroughly tests all of our products! The pricing displayed on our website is subject to change based on de-installation costs, installation requirements, rigging/disposal, and any other situational variables, but we do try to keep it as up to date as possible.
