14.6 MW Wartsila Natural Gas Power Plant for Sale:
(5) Wartsila 2925 kW Natural Gas Generators - Now Available!

Generator Source is excited to announce our newest large power generation equipment offering, a large 14 MW natural gas power plant!  The power plant features five low-hour Wartsila 2925 kW natural gas generators, LeRoy Somer Gen Ends, Electrical Switchgear and all associated equipment to run.

The generator sets are well maintained and in excellent condition.  The gensets are powered by the Series 220 slow turning 1200 RPM industrial natural gas engine, which is renowned for its longevity and reliability.  These units are heavy-duty, and built to last.


14.6 MW Wartsila Natural Gas Power Plant Package

• (5) 2925 kW Wärtsilä Series 220 Natural Gas Engines
• 1200 RPM
• 4160 Volt
• Environmentally Friendly Fuel Type: Natural Gas
• Rating - Prime/Continuous
• 60 HZ Frequency

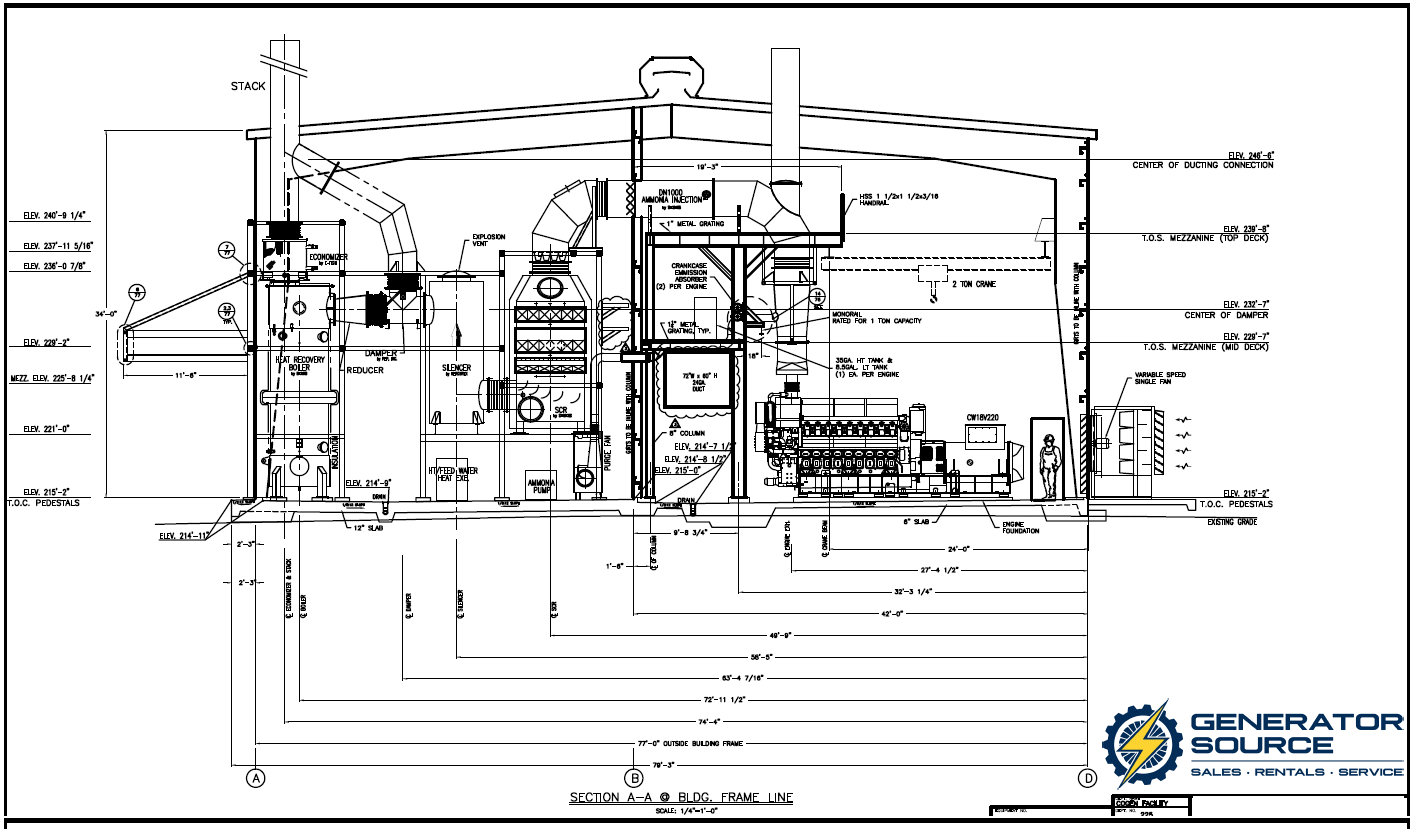

• Original Schematics and Drawings
• Year built: 1999 (281008 was built in 2000)
• Hours range from 1,500 to 1762
• Total Package Weight: 250,000 lbs.
• Includes Library of Folders (Operation Manuals & All Documentation)
• Electrical Switchgear & Components
• Triphased 480 VSC panel
• Basler Electric Controls
• Photos of internals of all genset engines (include Cam, Piston Internal to the engine, and Cylinder internal to the engine).
• GEA High and low temperature cooling fans
• Virginia Transformer
  • KVA: 16000/20000; HV: 12000; LV: 4160Y/2400
• Aqua Amonia & Oil Tanks
• Trico Blower (80,000 CFM, 75 Hp)
• Wärtsilä power plant technicians have inspected and started plant
• Power plant is still installed but no longer in use
• Photos of all accessories and components
• Configuration capable of co-generation operations (if desired)

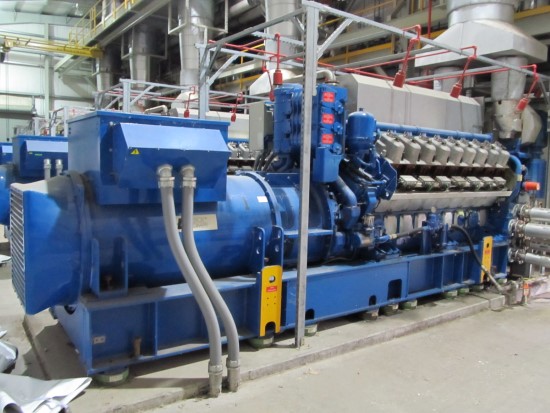

Series 220 Engine Specifications

• Manufacturer: Wärtsilä
• Series 220, 1200RPM, 2925 kW Mec.
• Serial numbers: 281004 through 281008
• Year built: 1999 (281008 was built in 2000)
• Dimensions:  288 x 80 x 110 IN, 35,000 LB
• Hours of operation:
  • 281004 = 1719 hrs.
  • 81005 = 1602 hrs.
  • 281006 = 1762 hrs.
  • 281007 = 1537 hrs.
  • 281008 = 1702 hrs.

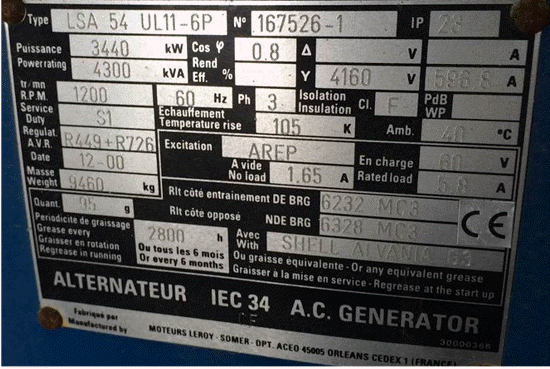

Leroy Sumer Generator End Specifications

• Manufacturer: Leroy Somer
• Type LSA 54 UL11-6P
• 430 KVA, 0.8 pf, 4160 v
• 596.8 Amps

• 14.625 MW Wartsila Natural Gas Generator (Unit-25055)

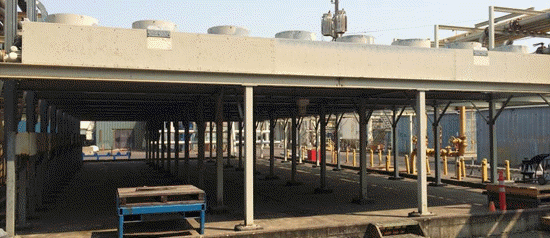

High and low temperature cooling fans:

• Manufacture: GEA
• Model/Ref:552/57949
• Year built: 2001
• Quantity: 10 units with 16 fans each


Additional Highlights

• Generator Source power plant specialist has inspected all equipment on-site twice
• Power plant is still installed and in person tours can be arranged for serious buyers
• Wärtsilä power plant techs have recently inspected and started
• Service is current, we can provide all service records for the plant
• Wärtsilä has a large worldwide presence & local service is available in most major cities.
  • Most generator service companies with large natural gas engine experience can service these if you will be installing in an area that does not have local Wärtsilä dealer.

Contact us online or call 844-205-1032 for questions and pricing!
